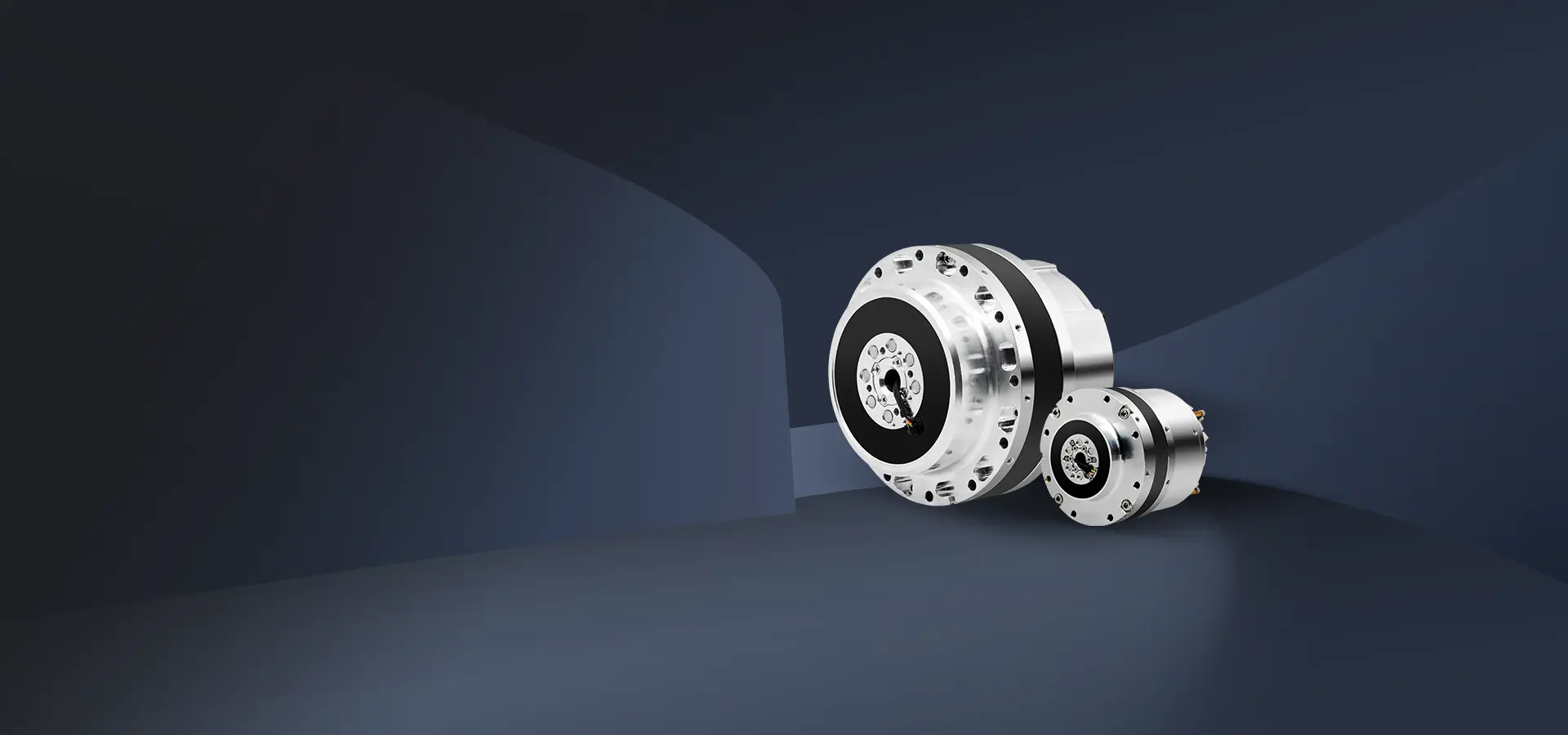

HJR Series Rotary Actuator with Force Control
New Products• Specifically developed for humanoid robot applications, customized services are provided.

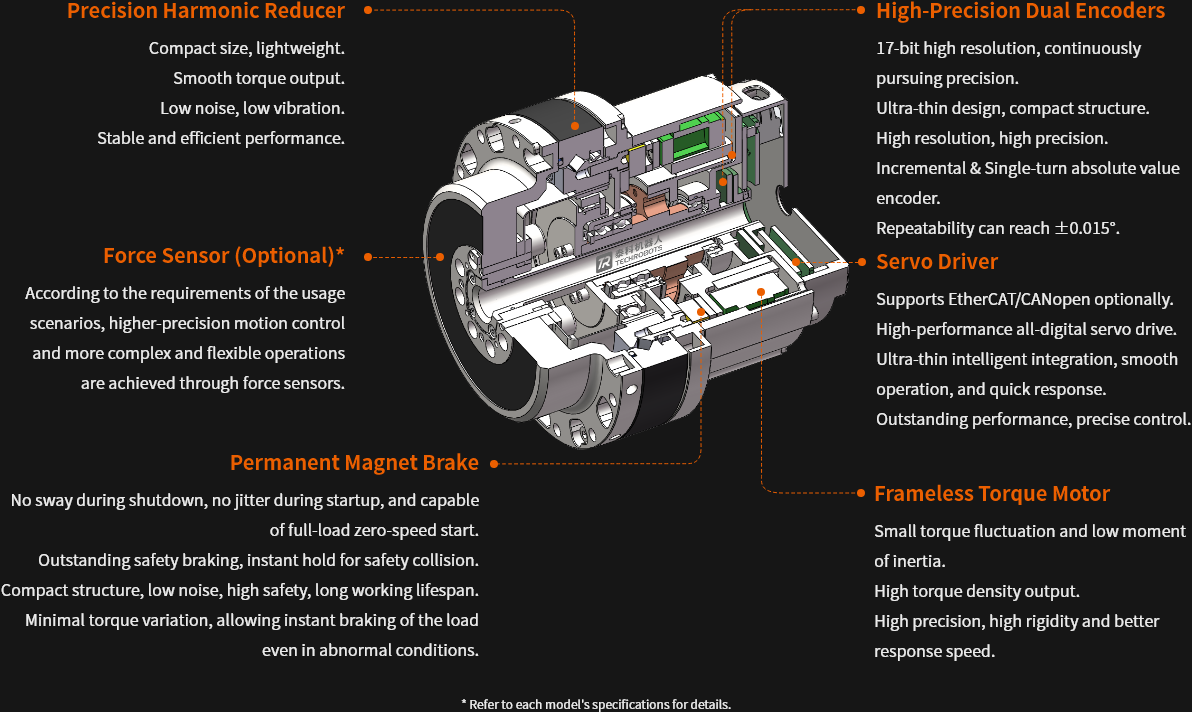

• Integrated harmonic reducer, motor, brake, encoder, driver and torque sensor.
• Innovative structure of the harmonic reducer further improves the overall lightweight level of the actuator.
• Powerful torque, strong performance, stable and reliable.
• Available in various specifications, assemble humanoid robots freely, significantly shortening the development cycle.
Application ScenariosSpecific Cases >
Widely applied to humanoid robots, bipedal robots, bionic robots with large loads, etc.
- 0.84kgMin Self-weight
- 70mmMin Diameter
- 133N·mMax Average Load Torque
- 80rpmMax Speed
- 60arcsecRepeatability
HJR14
Diameter: 70mm
Weight: 0.84kg
Average Load Torque: 13.5N·m
Rated Speed: 35rpm
Brake: Permanent Magnet Brake
Sensor: Single-Dimensional Force Sensor
HJR17
Diameter: 80mm
Weight: 1.2kg
Average Load Torque: 49N·m
Rated Speed: 29rpm
Brake: Permanent Magnet Brake
Sensor: Single-Dimensional Force Sensor
HJR20
Diameter: 90mm
Weight: 1.5kg
Average Load Torque: 80N·m
Rated Speed: 35rpm
Brake: Permanent Magnet Brake
Sensor: Single-Dimensional Force Sensor
HJR25
Diameter: 110mm
Weight: 2.3kg
Average Load Torque: 133N·m
Rated Speed: 24.5rpm
Brake: Permanent Magnet Brake
Sensor: Single-Dimensional Force Sensor
New craftsmanship with unique ingenuity
Solve the adaptability and stability of robots in more complex working environments
Technical Specifications
Specification
| Items | Unit | HJR14 | HJR17 | HJR20 | HJR25 |
| Parameters of Harmonic Drive Reducer | |||||
| Reduction Ratio | -- | 100 | 120 | 120 | 120 |
| Gearbox Backlash | arcsec | ≤20 | ≤20 | ≤20 | ≤20 |
| Transmission Accuracy | arcmin | ＜1 | ＜1 | ＜1 | ＜1 |
| Average Lifespan | Hour | 20000 | 20000 | 20000 | 20000 |
| Output Capability | |||||
| Permissible Starting and Stopping Torque | N·m | 34 | 66 | 108 | 207 |
| Average Load Torque | N·m | 13.5 | 49 | 80 | 133 |
| Maximum Instantaneous Torque | N·m | 66 | 107 | 182 | 376 |
| Maximum Allowable Bending Torque | N·m | 80 | 140 | 230 | 420 |
| Rated Speed | rpm | 35 | 29 | 35 | 24.5 |
| Maximum Speed | rpm | 80 | 58 | 50 | 29.1 |
| Repeatability | arcsec | <60 | <60 | <60 | <60 |
| Absolute Positioning Accuracy | arcsec | <300 | <300 | <300 | <300 |
| Servo System | |||||
| Motor Power | W | 100 | 180 | 250 | 500 |
| Rated Voltage | VDC | 48 | 48 | 48 | 48 |
| Rated Current | A(rms) | 3.8 | 5 | 8 | 10.5 |
| Peak Current | A(rms) | 11.6 | 14.5 | 15 | 25.8 |
| Incremental Encoder | P/R | 8000 | 8000 | 8000 | 8000 |
| Absolute Encoder | Bit | 17 | 17 | 17 | 17 |
| Communication Protocol | -- | EtherCAT / CANopen | |||
| Dimensions | |||||
| Diameter | mm | 70 | 80 | 90 | 110 |
| Length | mm | 88 | 99.3 | 92.8 | 107.6 |
| Through Hole Diameter | mm | 7 | 7 | 7 | 9.8 |
| Weight | kg | 0.84 | 1.2 | 1.5 | 2.3 |
| Other Specification | |||||
| Sensor | Single - Dimensional Force Sensor | ||||
| Brake | Permanent Magnet Brake | ||||
| IP Degree | IP40 | ||||
| Operating Environment | Operating Temperature: 0～40°C (Optional: -40 to 60°C), Storage Temperature: -40～ 80°C, Ambient Humidity: 90% Relative Humidity (Non-condensing) |
||||
Note: We offer OEM/ODM customization services. If you have any additional technical requirements, please contact us for further consultation.
